Straight curtain rail
Ref. 4359
Cut-to-size.
Concealed fixings.
Bright polished stainless steel tube, 1mm thick
Dimensions: Ø 20mm, 2m can be cut to size.
-
-
MINIMAL corner washbasin
Ref. 121550Wall-mounted corner washbasin (90° angle).
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm
Rounded edges prevent injury.
With Ø 35mm central tap hole.
Supplied with 1 ¼” waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 4kg. -
Wall-mounted electronic liquid soap dispenser, 1 litre
Ref. 512066PElectronic liquid soap dispenser, wall-mounted.
Vandal-resistant model with lock and standard DELABIE key.
No manual contact: hands are automatically detected by infrared cell (detection distancecan be adjusted).
Bacteriostatic 304 stainless steel cover.
One-piece hinged cover for easy maintenanceand better hygiene.
No waste pump dispenser: dispenses 0.8ml(can be adjusted up to 7 doses per activation).
Option of operation in anti-clogging mode.
Power supply: 6 AA -1.5V (DC9V) batteries supplied integrated in the soap dispenser body.
Low battery indicator light.
Tank with large opening: eases transfer of soapfrom large containers.
Window allows soap level to be checked.
Bright polished 304 stainless steel.
Stainless steel thickness: 1mm.
Capacity: 1 litre.
Dimensions : 90 x 105 x 256mm.
For vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s.
Compatible with hydroalcoholic gel.
CE marked.
10-year warranty. -

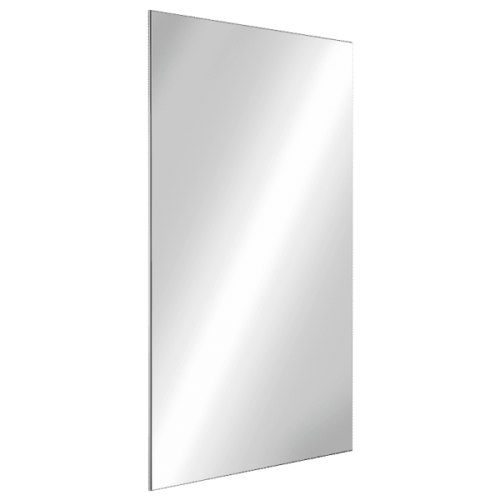

Rectangular stainless steel mirror, H. 1000mm
Ref. 3459Rectangular mirror made from “mirror” polished bacteriostatic 304 stainless steel.
For combined installation: height enables use from standing or sitting positions, or from a wheelchair.
Reinforced by a concealed, solid, 10mm thick PVC plate.
5 fixing points. Concealed fixings.
Unbreakable.
Dimensions: 10 x 595 x 980mm.
10-year warranty. -

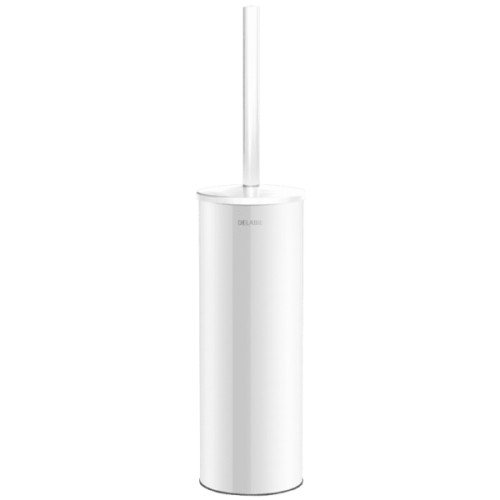

Wall-mounted toilet brush set with lid
Ref. 4051EWWall-mounted toilet brush set with lid.
Bacteriostatic 304 stainless steel. White powder-coated finish.
Wall-mounted model with anti-theft lock for fixing.
Robust model.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: avoids toilet brush sitting in residual water and reduces the risk of splashing when next used.
Toilet brush automatically centres itself in the holder.
Stainless steel body 1mm thick.
Dimensions: Ø 90 x 410mm.
10-year warranty. -

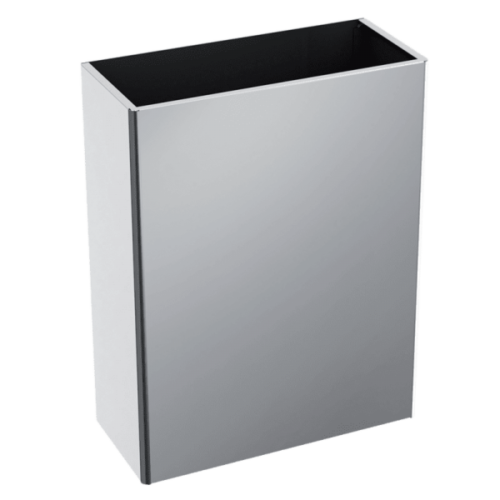

Wall-mounted 304 stainless steel bin, 38 litres
Ref. 510463SWall-mounted, rectangular bin for paper towels and paper towels.
Robust model.
1mm thick.
Bacteriostatic 304 stainless steel.
Capacity 38 litres.
Polished satin 304 stainless steel.
Stainless steel thickness: 1mm.
Dimensions: 160 x 400 x 590mm.
10-year warranty. -
Wall-mounted paper towel dispenser, for 500 sheets
Ref. 510601PWall-mounted paper towel dispenser.
Dispenses one sheet at a time, suitable for most paper towels.
With lock and standard DELABIE key.
Level control.
Capacity: 500 sheets.
Bright polished 304 bacteriostatic stainless steel.
Dimensions: 120 x 275 x 360mm.
Pack of 180 interfolded paper towels can be ordered separately (ref. 6606).
Paper towel dimensions: open 230 x 250mm, folded 115 x 250mm.
10-year warranty. -
HEMI inset round washbasin Ø 385mm
Ref. 120490Round washbasin for recessed installation from above or below.
Basin internal diameter: 385mm.
Cut-out diameter: 400mm for installation from above, 380mm for installation from below.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 0.8mm
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1 ¼” waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 1.6kg. -
Floor-standing disposal sink
Ref. 180150Floor-standing disposal sink.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.0mm.
One-piece pressed bowl, seam-free.
Smooth surface is easy to clean.
Adjustable feet height up to 40mm.
Supplied with 1½” waste. Without overflow.
Hinged stainless steel bucket grid.
Weight: 10.6kg. -
DESCRIPTION
Floor-standing ILHA drinking fountain
Ref. 180100Floor-standing drinking fountain.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 0.8mm.
Height: 915mm.
Supplied with bubbler tap: chrome-plated, instant shut-offand adjustable flow rate, inlet M3/8″.
Flat perforated waste, without screws:easy to clean and vandal-resistant.
Recessed vertical water outlet. Waste outlet 1¼”.
Supplied with fixing elements.
Weight: 9.6kg. -
HEMI inset round washbasin Ø 310mm
Ref. 120471Round basin for recessed installation from above or below.
Basin internal diameter: 310mm.
Cut-out diameter: 330mm for installation from above, 310mm for installation from below.
Bacteriostatic 304 stainless steel.
Bright polished finish.
Stainless steel thickness: 0.8mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1 ¼” waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 1.5kg. -
Wall-mounted BOB washbasin
Ref. 120130
Ref. 121130Wall-mounted washbasin.
Basin internal diameter: 310mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap.
Quick and easy to install from the front thanksto a stainless steel mounting frame.
Supplied with 1 ¼” waste and trap.
With tap hole Ø 35mm on right side.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg. -
KOMPACT washbasin and floor-standing WC combination
Ref. 160800Combination unit: washbasin and floor-standing central WC panwith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
WC pan central to the unit.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2″.
WC equipped with time flow flush valve, 7 second time flow, M3/4″.
Water inlet: washbasin M1/2″, WC M3/4″.
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg. -
CANAL wall-mounted wash trough
Ref. 120240Wall-mounted wash trough for 1 post.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Drainage on the right.
With no tap hole.
Supplied with 1 ½” waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 6kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800001). -
CANAL wall-mounted wash trough
Ref. 120260Wall-mounted wash trough for 2-3 posts – L. 1,400mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½” waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 10kg. -
LP trough urinal
Ref. 130320Floor-standing trough urinal.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rear water inlet.
Central drainage.
Supplied with 3 stainless steel rinsers and 3 flexible hoses.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½”. Supplied with waste and integrated trap (ref. 785000).
Easy to install and maintain thanks to access panels with theft prevention TORX security screws.
Weight: 33.5kg.
Length: 1800mm -
Surgical scrub-up trough with low upstand
Ref. 187020Wall-mounted surgical scrub-up trough with 75mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 2,100mm, 3 services. Without tap hole.
Smooth surface and rounded inside edges for easy cleaning.
“Hygiene+”: reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow. Supplied with fixing elements.
Weight: 37.6kg. -
FINO WF water-free urinal
Ref. 135010Wall-hung individual water-free urinal.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Recessed horizontal waste outlet.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
1½” waste outlet.
Supplied with a silicone membrane to prevent bad smells.
Supplied with fixing elements.
Weight: 3.5kg. -
Neck tube for TEMPOMATIC 4 TEMPOFLUX recessed urinal valves
Ref. 757430
Neck tube for recessed TEMPOMATIC 4 and TEMPOFLUX urinal valves, and standard urinals with ½” flexible for supply.
30-year warranty. -
Neck tube for TEMPOMATIC 4 and TEMPOFLUX recessed flush valves
Ref. 752430
Neck tube for TEMPOMATIC 4 recessed urinal valves, recessed TEMPOFLUX urinals and standard urinals with Ø 35mm connection washer for supply.
30-year warranty. -
SPORTING 2 shower panel
Ref. 714800
Electronic shower panel:
Anodised aluminium and chrome-plated satin finish panel.
Adjustable connector for top or back inlets.
Slimline structure with concealed fixings.
Mains supply 230/6V.
Infrared presence detection. Shower starts when hand is moved towards the sensor (detection distance ~4cm).
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Tamperproof, scale-resistant fixed shower head with automatic flow rate regulation.
Adjustable spray.
Accessible filter.
Integrated stopcock.
M½” connection for mixed water supply.
Suitable for people with reduced -
Stainless steel BIOCLIP spout
Ref. 20004
Removable stainless steel BIOCLIP spout L. 70mm Ø 28mm or easy cleaning/descaling of the interior or autoclaving.
Spouts fitted with a hygienic flow straightener, suitable for fitting a point-of-use BIOFIL filter.
Spout with smooth interior reduces bacterial development.
The second spout enables continuous use during cleaning/descaling of the first spout.
Suitable for all mixers and taps with BIOCLIP spout.
2 per pack. -
Stainless steel BIOCLIP spout
Ref. 20003
Removable stainless steel BIOCLIP spout L. 77mm, Ø 28mm for easy cleaning/descaling of the interior or autoclaving.
Fitted with a hygienic flow straightener, suitable for fitting a point-of-use BIOFIL filter.
Spout with smooth interior reduces bacterial development.
The second spout enables continuous use during cleaning/descaling of the first spout.
Suitable for all mixers and taps with BIOCLIP spout.
2 per pack. -
Automatic hand dryer activated via optical cell, 304 stainless steel
Ref. 6631Automatically activated by optical cell.
304 stainless steel cover, bright polished finish.
Dimensions: 124 x 216 x 318mm.
Weight: 3.8kg.
Power: 1,960W. 50 Hz.
Airflow: 65 l/second.
Flow noise level: 58 dBA.
Class I, IPX1.
CE marked, TÜV GS.
3-year warranty. -
Hand dryer automatically activated by optical cell, with 360° nozzle
Ref. 6615Automatic hand dryer.
Vandal-resistant model.
Automatically activated via optical cell.
360° rotating nozzle.
Metal thickness: 1.2mm.
White, enamelled cast steel cover.
Dimensions: 210 x 280 x 220mm.
Weight: 3.5kg.
Power: 2,000W.50-60 Hz.
Air flow: 95 l/sec.
Low noise level: 68 dBA.
Class II maximum security (double insulated electrical appliance), IP23.
CE, TÜV GS.
Warranty: 3 years. -
Hand dryer automatically activated by optical cell, with 360° nozzle
Ref. 6614Automatic hand dryer.
Vandal-resistant model.
Automatically activated via optical cell.
360° rotating nozzle.
Metal thickness: 1.2mm.
Polished satin 304 stainless steel cover.
Dimensions: 210 x 280 x 220mm.
Weight: 3.5kg.
Power: 2,000W.50-60 Hz.
Air flow: 95 l/sec.
Low noise level: 68 dBA.
Class II maximum security (double insulated electrical appliance), IP23.
CE, TÜV GS.
Warranty: 3 years. -
Hand dryer automatically activated by optical cell, with 360° nozzle
Ref. 6613DAutomatic hand dryer.
Vandal-resistant model.
Automatically activated via optical cell.
360° rotating nozzle.
Metal thickness: 1.2mm.
Cover 304 stainless steel, bright polished finish.
Dimensions: 210 x 280 x 220mm.
Weight: 3.5kg.
Power: 2,000W. 50-60Hz.
Airflow: 95 l/second.
Low noise level: 68 dBA.
Maximum safety, Class II insulation(double electrical insulation), IP23.
CE marked, TÜV GS.
3-year warranty. -
HIGHFLOW high-speed hand dryer
Ref. 510622WHIGHFLOW air pulse hand dryer.
Robust model.
Lit central nozzle concentrates pulsed air onto hands at 230km/h.
High speed: dries in 10 to 12 seconds.
Choice of warm or cold air via concealed switch.
Infrared automatic activation.
Intelligent technology: stops automatically when hands are removed.
Anti-blocking: stops automatically if used continuously for more than 60 seconds.
Bacteriostatic 304 stainless steel.
Easy to clean: one-piece cover.
Stainless steel thickness: 1mm.
Dimensions: 175 x 238 x 267mm.
Weight: 4kg.
Airflow: 39 l/second.
Air speed: 230km/h.
Low energy consumption: 1,350W.
220-240V~ / 50 Hz.
Noise level: 70 dBA.
Class I, IPX1.
CE marked.
3-year warranty. -
HIGHFLOW high-speed hand dryer
Ref. 510622SHIGHFLOW air pulse hand dryer.
Robust model.
Lit central nozzle focuses the pulsed air onto hands at over 230km/h.
High speed: dries in 10 -15 seconds.
Choice of warm or cool air via a concealed switch.
Infrared automatic activation.
Intelligent technology: stops automatically when hands are removed.
Anti-blocking: stops automatically if used continuously for more than 60 seconds.
Bacteriostatic polished satin 304 stainless steel.
Easy to clean: one-piece cover.
Stainless steel thickness: 1mm.
Dimensions: 175 x 238 x 267mm.
Weight: 4kg.
Airflow: 39 l/second.
Air speed: 230km/h.
Low energy consumption: 1,350W.
220-240V~ / 50 Hz.
Noise level: 70 dBA.
Class I, IPX1.
CE marked.
3-year warranty. -
Toilet brush set with lid
Ref. 4050EWToilet brush set with lid.
Bacteriostatic 304 stainless steel. White powder-coated finish.
Floor-standing model.
Robust model.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: avoids toilet brush sitting in residual water and reduces the risk of splashing when next used.
Toilet brush automatically centres itself in the holder.
Stainless steel thickness: 1mm.
Dimensions: Ø 90 x 410mm.
10-year warranty. -
Toilet brush set with lid
Ref. 4050PToilet brush set with lid.
Bright polished finish bacteriostatic 304 stainless steel.
Floor-standing model.
Robust model.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: avoids toilet brush sitting in residual water and reduces the risk of splashing when next used.
Toilet brush automatically centres itself in the holder.
Stainless steel thickness: 1mm.
Dimensions: Ø 90 x 410mm.
10-year warranty. -
Toilet brush set
Ref. 4049EWToilet brush set without lid.
White powder-coated bacteriostatic 304 stainless steel.
Floor-standing model.
Robust model.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: avoids toilet brush sitting in residual water and reduces the risk of splashing when next used.
Stainless steel thickness: 1mm.
Dimensions: Ø 90mm x 330mm.
10-year warranty. -
Toilet brush set
Ref. 4049SToilet brush set without lid.
Polished satin bacteriostatic 304 stainless steel.
Floor-standing model.
Robust model.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: avoids toilet brush sitting in residual water and reduces the risk of splashing when next used.
Stainless steel thickness: 1mm.
Dimensions: Ø 90mm x 330mm.
10-year warranty. -
Toilet brush set
Ref. 4049PToilet brush set without lid.
Bright polished bacteriostatic 304 stainless steel.
Floor-standing model.
Robust model.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: avoids toilet brush sitting in residual water and reduces the risk of splashing when next used.
Stainless steel thickness: 1mm.
Dimensions: Ø 90mm x 330mm.
10-year warranty. -
Wall-mounted paper towel dispenser, for 750 sheets
Ref. 6602Wall-mounted paper towel dispenser.
With lock and standard DELABIE key.
With level control.
Capacity 750 sheets.
Metal thickness: 1mm..
White powder-coated.
Dimensions: 130 x 270 x 450mm.
Pack of 180 folded paper towels can be ordered separately (ref. 6606).
Paper towel dimensions: open 230 x 250 mm, closed 115 x 250 mm.
10-year warranty. -
Wall-mounted paper towel dispenser, for 750 sheets
Ref. 6607DWall-mounted paper towel dispenser.
With lock and standard DELABIE key.
With level control.
Capacity 750 sheets.
Stainless steel thickness: 1mm.
Polished satin stainless steel.
Dimensions: 130 x 275 x 450mm.
Pack of 180 folded paper towels can be ordered separately.
Paper towel dimensions: open 230 x 250 mm, closed 115 x 250 mm.
10-year warranty. -
Wall-mounted XL S disposal sink
Ref. 182160Wall-mounted disposal sink.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Smooth surface for easy cleaning.
Concealed perimetral flushing system.
Horizontal water inlet: Ø 55mm.
Recessed horizontal waste outlet: Ø 100mm.
Concealed drainage: shrouded sink.
Quick and easy to install from the front thanksto a stainless steel mounting frame.
Hinged stainless steel bucket grid.
Supplied with fixing elements.
Weight: 15kg. -
Floor-standing XL P disposal sink
Ref. 182070Floor-standing disposal sink.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
Smooth surface is easy to clean.
Concealed perimetral flushing system.
Horizontal or vertical water inlet: Ø 55mm.
Horizontal or vertical water outlet: Ø 100mm.
Supplied with PVC pipe.
Concealed drainage: shrouded sink.
Quick and easy to install: 2 access panels
with theft prevention TORX security screws.
Hinged stainless steel bucket grid.
Weight: 16kg. -
PMR recessed shower tray
Ref. 150600Recessed shower tray, 900 x 900mm.
Suitable for people with reduced mobility: slimline shower tray.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Drainage slope.
Supplied with 1 ½” waste.
Non-slip surface.
CE marked. Complies with European standard EN 14527.
Weight: 9.5kg.
