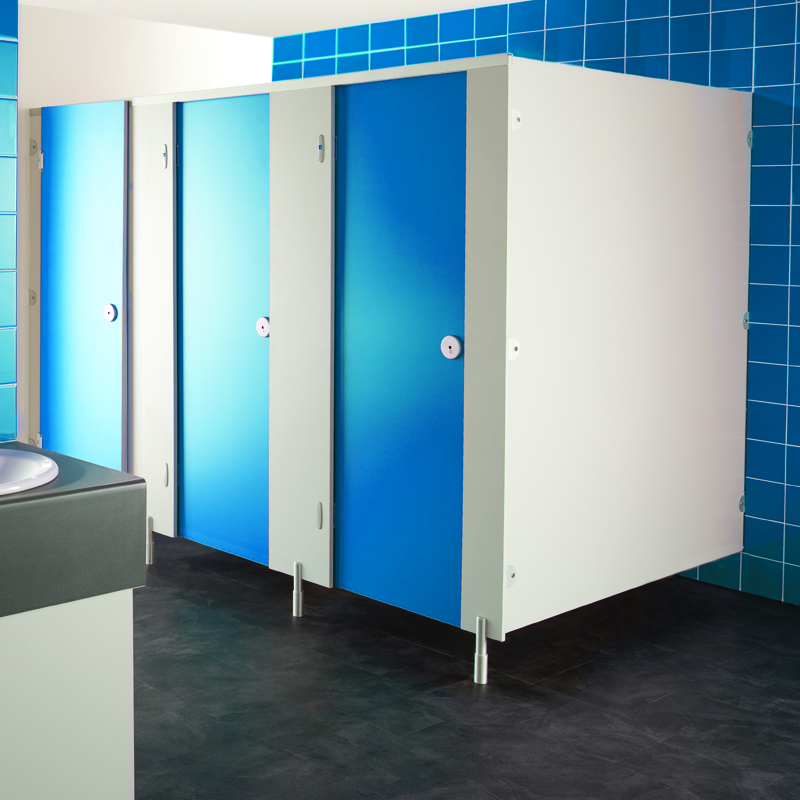

MFC Made to Measure Toilet Cubicles

Our Plumbware MFC  Toilet Cubicles are designed for use within dry environments. Panels and doors are made to measure from melamine faced chipboard (MFC) with cubicle fittings made from satin anodised aluminium.

The cubicle partitions, pilasters and doors are manufactured from 18mm melamine faced chipboard (MFC) with all visible MFC panels having impact resistant, PVC edging applied. Satin Anodised Aluminium (SAA) pilaster brackets, wall brackets, legs, locks and hinges finish this functional design.

Prices displayed incorporate the common washroom layouts up to 6 Cubicles wide. Between walls assumes two solid walls on either side of the cubicle run, and left or right end assumes the run of cubicles will be installed against one solid side wall on either the left or right.

Read More

Cubicle Colours:

Doors are available in the standard range of Stone Grey, Plain Grey, White, Blue and Smoke Blue with Side Panels and Pilasters available in Stone Grey, Plain Grey and White.

Cubicle Installation:

Panels are manufactured bespoke to your room sizes . Upon ordering CAD drawings will be produced to confirm the exact dimensions required before production,

Our Toilet Cubicles are straightforward to install for any competent tradesman.

Additional options include IPS duct panels.

Material Specification:

  • Doors: 18mm Melamine Faced Chipboard (MFC) panels with an extra thick edging of 2mm PVC.
  • Partitions: 18mm Melamine Faced Chipboard (MFC) panels with an extra thick edging of 2mm PVC.
  • Pilasters: 18mm Melamine Faced Chipboard (MFC) panels with an extra thick edging of 2mm PVC.
  • Hardware: Satin Anodised Aluminium (SAA) fittings – Headrail, pilaster brackets, wall brackets, adjustable leg, door lock and hinges.

Dimensions Guide:

  • Overall Cubicle Height: 1955mm (standard).
  • Partition Square Height: 1806mm
  • Partition Depth: 1400 – 1800mm

MFC Made to Measure Toilet Cubicles

From £225.00 ex VAT

Usually despatched approximately within 10 working days from sign off

Plumbware MFC Toilet Cubicles are designed for use in dry environments. Panels and doors are made to measure from Melamine Faced Chipboard (MFC), and cubicle fittings are made from satin anodised aluminium (SAA).
Please select options for a bespoke price.

Measurements

  • Depth *

    Min 1400mm, Max 1800mm

  • Wall to wall Measurement *

    Enter exact measurement

  • Tell us the width of each cubicle *

    List measurements separated with a comma

Door Colour

  • Select Colour *

Panel Colour

  • Select Colour *

Sign off Drawings

Once we recieve your order, we'll send you back a drawing to confirm the configuration. You can swap hinge orientation between cubicles if required.
