Delabie MINIMAL Corner Washbasin Central Tap Hole

£305.00 ex VAT

MINIMAL corner washbasin
Ref. 121550

Wall-mounted corner washbasin (90° angle).
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm
Rounded edges prevent injury.
With Ø 35mm central tap hole.
Supplied with 1 ¼” waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 4kg.

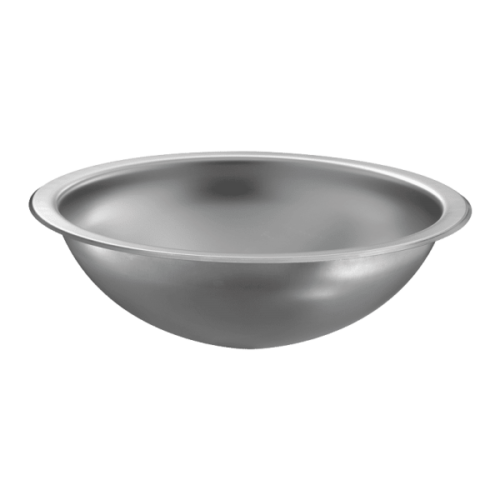

Delabie HEMI Inset Round Washbasin Ø 385mm

£116.00 ex VAT

HEMI inset round washbasin Ø 385mm
Ref. 120490

Round washbasin for recessed installation from above or below.
Basin internal diameter: 385mm.
Cut-out diameter: 400mm for installation from above, 380mm for installation from below.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 0.8mm
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1 ¼” waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 1.6kg.

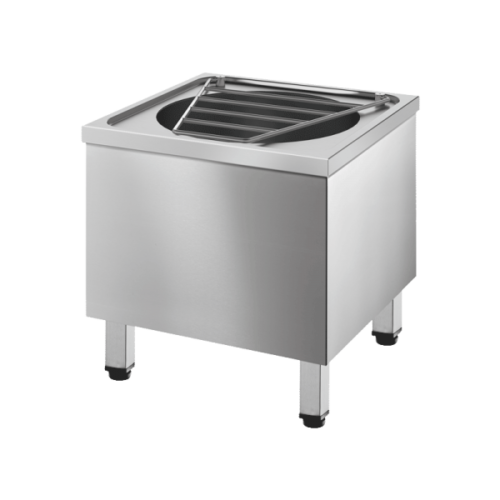

Delabie Floor-Standing Disposal Sink

£572.00 ex VAT

Floor-standing disposal sink
Ref. 180150

Floor-standing disposal sink.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.0mm.
One-piece pressed bowl, seam-free.
Smooth surface is easy to clean.
Adjustable feet height up to 40mm.
Supplied with 1½” waste. Without overflow.
Hinged stainless steel bucket grid.
Weight: 10.6kg.

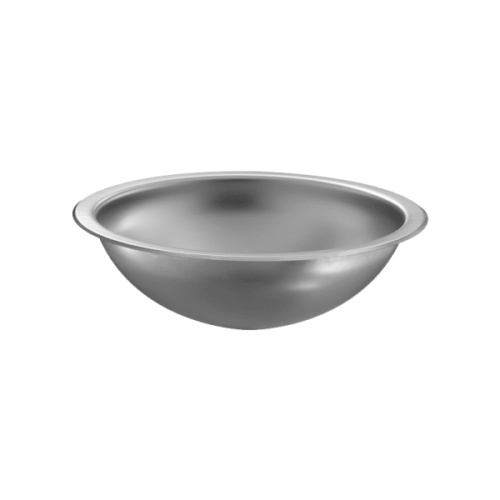

Delabie HEMI Inset Round Washbasin Ø 310mm

£137.00 ex VAT

HEMI inset round washbasin Ø 310mm
Ref. 120471

Round basin for recessed installation from above or below.
Basin internal diameter: 310mm.
Cut-out diameter: 330mm for installation from above, 310mm for installation from below.
Bacteriostatic 304 stainless steel.
Bright polished finish.
Stainless steel thickness: 0.8mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1 ¼” waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 1.5kg.

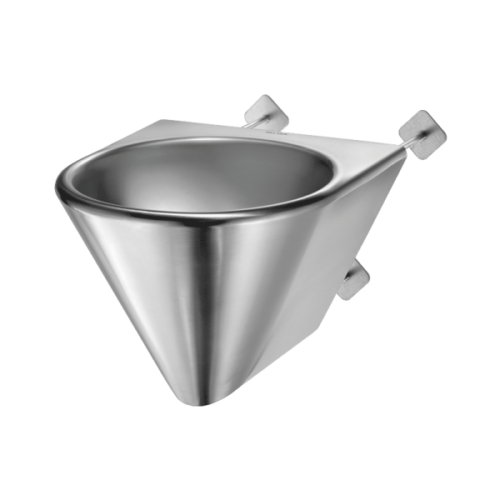

Delabie Wall-Mounted BOB Washbasin

£320.00 ex VAT

Wall-mounted BOB washbasin
Ref. 120130
Ref. 121130

Wall-mounted washbasin.
Basin internal diameter: 310mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap.
Quick and easy to install from the front thanksto a stainless steel mounting frame.
Supplied with 1 ¼” waste and trap.
With tap hole Ø 35mm on right side.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg.
Neck tube for TEMPOMATIC 4 and TEMPOFLUX recessed flush valves 757430

£37.00 ex VAT

Neck tube for TEMPOMATIC 4 TEMPOFLUX recessed urinal valves

Ref. 757430

Neck tube for recessed TEMPOMATIC 4 and TEMPOFLUX urinal valves, and standard urinals with ½” flexible for supply.
30-year warranty.
Neck tube for TEMPOMATIC 4 and TEMPOFLUX recessed flush valves 752430

£20.00 ex VAT

Neck tube for TEMPOMATIC 4 and TEMPOFLUX recessed flush valves

Ref. 752430

Neck tube for TEMPOMATIC 4 recessed urinal valves, recessed TEMPOFLUX urinals and standard urinals with Ø 35mm connection washer for supply.
30-year warranty.
Recessed waterproof housing for TEMPOMATIC 4 urinal 430PBOX

£105.00 ex VAT

Recessed waterproof housing for TEMPOMATIC 4 urinal

Ref. 430PBOX

Recessed waterproof housing for electronic urinal valves, kit 1/2:
Compatible with 123 Lithium 6V battery supply.
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes 10 – 120mm (while maintaining the minimum recessing depth of 83mm).
Suitable for standard or “pipe in pipe” supply.
Valve configured for secure system flush without sensitive elements, and connection accessories.
Connection with Ø 35mm connection washer (for standard urinals) or ½” brass connection (for urinals supplied by flexible).
For use with neck tube 752430 or 757430.
30-year warranty.

Order with control plate references 430006, 430016, 430026, or 430036,
TEMPOFIX 3 frame system for urinals 543006D

£404.00 ex VAT

TEMPOFIX 3 frame system for urinals

Ref. 543006D

Frame system for urinal with flexible ½”, kit ½:
Black powder-coated steel frame for wall-mounted installation.
Fixes to floor and load-bearing walls with anchoring bolts supplied.
Adjustable bracket from 95 – 280mm.
Frame height can be adjusted from 0 to 200mm.
Ø 50mm soil pipe with waterproof seal.
Tube with ½” brass connection for urinals with flexible inlet.
Delivered pre-mounted.
Compatible with solid wall finishes from 13 – 120mm.
Supplied with recessed housing.
Valve configured for system flush, with accessories and connection protection..
30-year warranty.

Order with control plate references 430006, 430016, 430026, 430036, 778700 or 778707.
TEMPOFIX 3 frame system for urinals 543006

£404.00 ex VAT

TEMPOFIX 3 frame system for urinals

Ref. 543006

Frame system for urinals Ø 35mm, kit 1/2:
Black powder-coated steel frame for wall-mounted installation.
Fixes to floor and load-bearing walls with anchoring bolts supplied.
Adjustable bracket from 95 – 280mm.
Frame height can be adjusted from 0 to 200mm.
Ø 50mm soil pipe with waterproof seal and tube with connection washer Ø 35mm.
Delivered pre-mounted.
Compatible with solid wall finishes from 13 to 120mm.
Supplied with recessed housing
Valve configured for system flush, with accessories and connection protection.
30-year warranty.
Order with control plate references 430006, 430016, 430026, 430036, 778700 or 778707.
Delabie TEMPOFLUX control plate for urinals 778707

£153.00 ex VAT

TEMPOFLUX control plate for urinals

Ref. 778707

Control plate and time flow valve TEMPOFLUX F½”, kit 2/2:
Satin finish stainless steel wall plate 145 x 145mm.
Chrome-plated metal button.
Soft-touch operation.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted up to 0.3 L/sec.
Compatible with sea water, rain water and grey water.
Complies with European standard EN 12541 (class II acoustic level).
Install in waterproof housing with waterproof collar, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.Order with frame system references 543006 for urinals Ø 35mm, 543006D for urinals with flexible ½”
Delabie TEMPOFLUX control plate for urinals 778700

£153.00 ex VAT

TEMPOFLUX control plate for urinals

Ref. 778700

Control plate and time flow valve TEMPOFLUX F½”, kit 2/2:
Satin finish stainless steel wall plate 145 x 145mm.
Chrome-plated metal button.
Soft-touch operation.
Time flow pre-set at ~3 seconds.
Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted up to 0.3 L/sec.
Compatible with sea water, rain water and grey water.
Complies with European standard EN 12541 (class II acoustic level).
Install in waterproof housing with waterproof collar, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.

Order with frame system references 543006 for urinals Ø 35mm, 543006D for urinals with flexible ½” or with 778BOX recessed housing.
Delabie Control plate for TEMPOMATIC 4 for urinals 430036

£363.00 ex VAT

Control plate for TEMPOMATIC 4 for urinals

Ref. 430036

TEMPOMATIC 4 electronic valve F½”, kit 2/2.
Battery-operated with CR 123 Lithium 6V batteries.
Solenoid valve enables opening and closing of water.
Black control plate 145 x 145mm in shock-resistant vitro-ceramic glass with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE):
– Short rinse after each user.
– Additional rinse after the period of increased frequency of use.
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vacuums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½” valve compatible with sea water, rain water and grey water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.Order with frame system references 543006 for urinals Ø 35mm, 543006D for urinals with flexible ½” or with recessed housing 430PBOX.
Delabie Control plate for TEMPOMATIC 4 for urinals 430026

£302.00 ex VAT

Control plate for TEMPOMATIC 4 for urinals

Ref. 430026

TEMPOMATIC 4 electronic valve F½”, kit 2/2.
Battery-operated with CR 123 Lithium 6V batteries.
Solenoid valve enables opening and closing of water.
White powder-coated stainless steel white wall plate 145 x 145mm with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE):
– Short rinse after each user.
– Additional rinse after the period of increased frequency of use.
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vaccums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½” valve compatible with sea water, rain water and grey water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
10-year warranty.Order with frame system references 543006 for urinals Ø 35mm, 543006D for urinals with flexible ½” or with recessed housing 430PBOX.
Delabie Control plate for TEMPOMATIC 4 for urinals 430006

£302.00 ex VAT

Recessed Control plate for TEMPOMATIC 4 for urinals

Ref. 430006

TEMPOMATIC 4 electronic valve F½”, kit 2/2.
Battery-operated with CR 123 Lithium 6V batteries.
Solenoid valve enables opening and closing of water.
Satin finish stainless steel wall plate 145 x 145mm with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE):
– Short rinse after each user.
– Additional rinse after the period of increased frequency of use.
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vaccums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½” valve compatible with sea water, rain water and grey water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
10-year warranty.Order with frame system references 543006 for urinals Ø 35mm, 543006D for urinals with flexible ½” or with recessed housing 430PBOX.
Delabie Control plate for TEMPOMATIC 4 for urinals 430016

£302.00 ex VAT

Control plate for TEMPOMATIC 4 for urinals

Ref. 430016

TEMPOMATIC 4 electronic valve F½”, kit 2/2.
Battery-operated with 123 Lithium 6V batteries.
Solenoid valve enables opening and closing of water.
Chrome-plated finish stainless steel wall plate 145 x 145mm with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE):
– Short rinse after each user.
– Additional rinse after the period of increased frequency of use.
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vaccums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½” valve compatible with sea water, rain water and grey water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
10-year warranty.Order with frame system references 543006 for urinals Ø 35mm, 543006D for urinals with flexible ½” or with recessed housing 430PBOX.
Delabie SPORTING 2 shower panel

£295.00 ex VAT

SPORTING 2 shower panel

Ref. 714800

Electronic shower panel:
Anodised aluminium and chrome-plated satin finish panel.
Adjustable connector for top or back inlets.
Slimline structure with concealed fixings.
Mains supply 230/6V.
Infrared presence detection. Shower starts when hand is moved towards the sensor (detection distance ~4cm).
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Tamperproof, scale-resistant fixed shower head with automatic flow rate regulation.
Adjustable spray.
Accessible filter.
Integrated stopcock.
M½” connection for mixed water supply.
Suitable for people with reduced
Stainless steel BIOCLIP spout 20004

£78.00 ex VAT

Stainless steel BIOCLIP spout

Ref. 20004

Removable stainless steel BIOCLIP spout L. 70mm Ø 28mm or easy cleaning/descaling of the interior or autoclaving.
Spouts fitted with a hygienic flow straightener, suitable for fitting a point-of-use BIOFIL filter.
Spout with smooth interior reduces bacterial development.
The second spout enables continuous use during cleaning/descaling of the first spout.
Suitable for all mixers and taps with BIOCLIP spout.
2 per pack.
Stainless steel BIOCLIP spout

£79.00 ex VAT

Stainless steel BIOCLIP spout

Ref. 20003

Removable stainless steel BIOCLIP spout L. 77mm, Ø 28mm for easy cleaning/descaling of the interior or autoclaving.
Fitted with a hygienic flow straightener, suitable for fitting a point-of-use BIOFIL filter.
Spout with smooth interior reduces bacterial development.
The second spout enables continuous use during cleaning/descaling of the first spout.
Suitable for all mixers and taps with BIOCLIP spout.
2 per pack.
Delabie Changing table

£330.00 ex VAT

Changing table

Ref. 510700

Wall-mounted changing table.
With adjustable strap adapts perfectly to the shape of the newly changed baby.
For babies up to 11kg or 12 months.
High density polyethylene (HDPE).
Space saving: retained in the vertical position.
Slowed down descent.
Easy to maintain: surface is easy to clean.
Complies with European standard EN 12221.
Dimensions: open position 855 x 585 x 495mm, closed position 855 x 585 x 107mm.
Changing table weight: 11.5kg.
Wall-mounted changing table with 10-year warranty.
