TEMPOFIX 3 frame system for urinals 543006

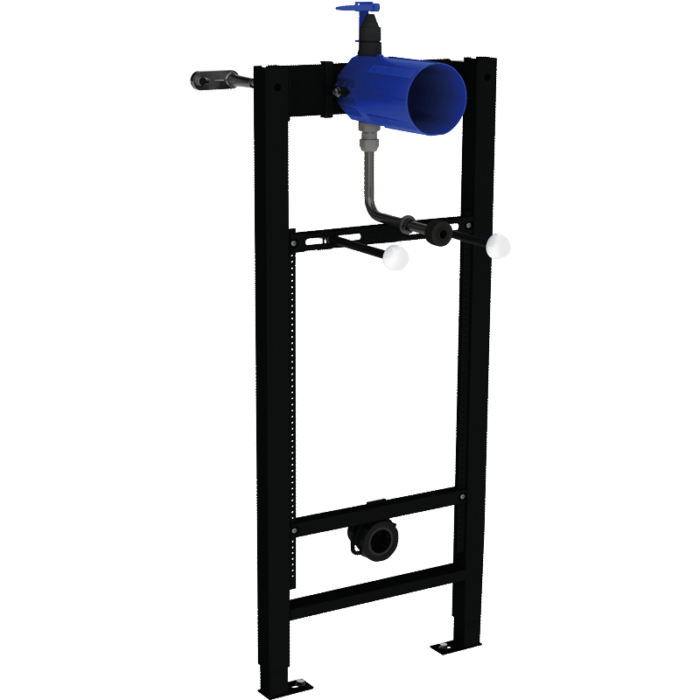

TEMPOFIX 3 frame system for urinals
Ref. 543006

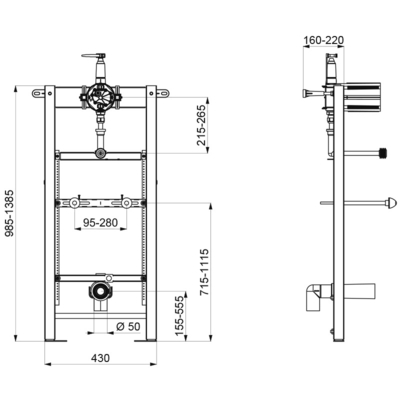

Frame system for urinals Ø 35mm, kit 1/2:
Black powder-coated steel frame for wall-mounted installation.
Fixes to floor and load-bearing walls with anchoring bolts supplied.
Adjustable bracket from 95 – 280mm.
Frame height can be adjusted from 0 to 200mm.
Ø 50mm soil pipe with waterproof seal and tube with connection washer Ø 35mm.
Delivered pre-mounted.
Compatible with solid wall finishes from 13 to 120mm.
Supplied with recessed housing
Valve configured for system flush, with accessories and connection protection.
30-year warranty.
Order with control plate references 430006, 430016, 430026, 430036, 778700 or 778707.
Black powder-coated steel frame for wall-mounted installation.
Fixes to floor and load-bearing walls with anchoring bolts supplied.
Adjustable bracket from 95 – 280mm.
Frame height can be adjusted from 0 to 200mm.
Ø 50mm soil pipe with waterproof seal and tube with connection washer Ø 35mm.
Delivered pre-mounted.
Compatible with solid wall finishes from 13 to 120mm.
Supplied with recessed housing
Valve configured for system flush, with accessories and connection protection.
30-year warranty.
Order with control plate references 430006, 430016, 430026, 430036, 778700 or 778707.
